Model

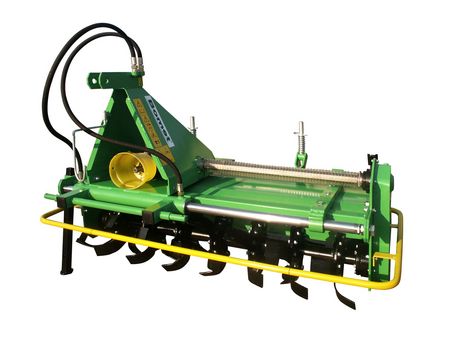

Mini Rotavator

Working Width

3 Ft

Blade

30 (L- Type)

T=6 mm

H = 54 mm

Centre Hole Distance = 29 mm

Dimensions

L - 26 Inch

W - 46 Inch

H - 24 Inch

Weight

193 Kg.

Require of Tractor H.P.

10 H.P. Onward

Tractor PTO Rpm

540

Gear Box

Single gear drive

Crown – Pinion

13 Teeth – 23 Teeth

Side Spur Gear

19 Teeth,

35 Teeth,

28 Teeth
